Double force all‑steel variable clamps (SLV)
Product details
- End fasteners can be loosened without tools

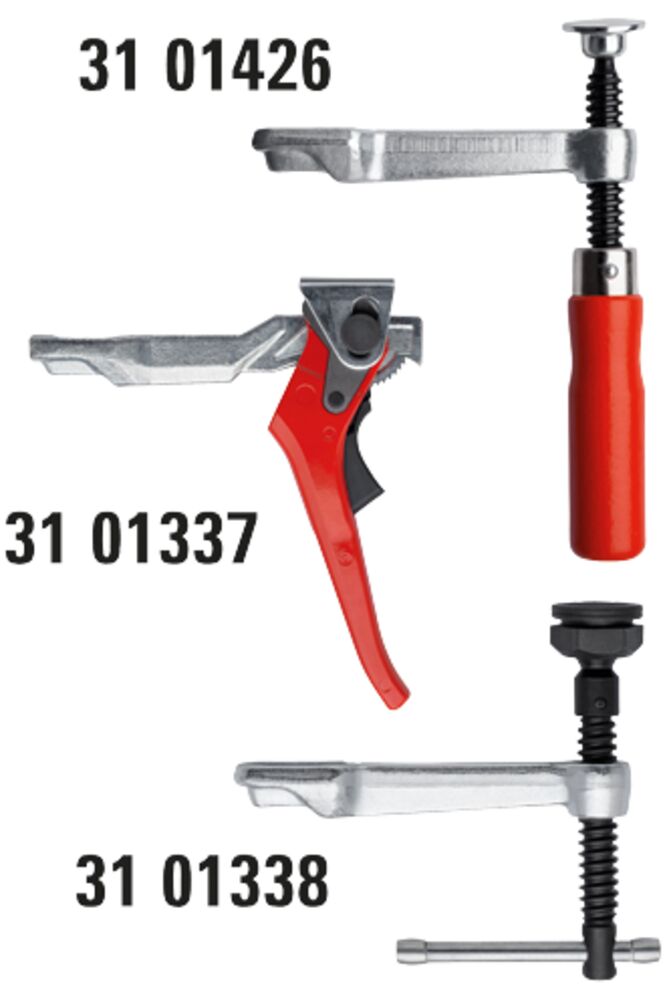

- Interchangeable sliding arms
- BESSEY MorPad – extends tool life
- Tempered spindle is sturdy and wear resistant
- Wooden handle, lever handle T Bar add-on arms
- Choice of smooth faced pad (STD), rough faced or grooved
- Add arms, different pads and configure to your specific needs
= Show Spareparts
| Order number | Clamping capacity | Throat depth | Rail profile | Clamping force | Approx. weight |
| inches | inches | inches | lbs | lbs | |
|---|---|---|---|---|---|
|
SLV40M
|
16 | 4 3/4 | 1 1/16 x 1/2 | 1450 | 6.75 |
|
SLV100M
|
39 1/2 | 4 3/4 | 1 1/16 x 1/2 | 1450 | 10.38 |
|
SLV150M
|
60 | 4 3/4 | 1 1/16 x 1/2 | 1450 | 11.5 |
|
SLV200M
|
79 | 4 3/4 | 1 1/16 x 1/2 | 1450 | 14.33 |
- Shell construction
- Metal construction
- Carpentry and woodwork
- Locksmith work
- New flexibility with large clamping widths
- Clamping tools are designed for securing objects only and should not be used for lifting, pulling, or transporting.
- Always operate clamping tools manually without additional tools.
- Misuse can result in injury or material damage.
- Do not alter or modify clamping tools – use them only in their original condition.
- Regular maintenance is essential to ensure a secure hold and prevent the sliding arm from slipping.
- Clean the rails using a suitable solvent to remove dirt and debris.
- Keep the rail free of contaminants such as grease, oil, dried glue, wax, and silicone-based release agents, as these can affect performance.
- Clean and oil the spindle regularly.
- Regularly clean and oil the spindle to maintain smooth operation and prevent wear.
- Clean and oil the pressure plate regularly.
